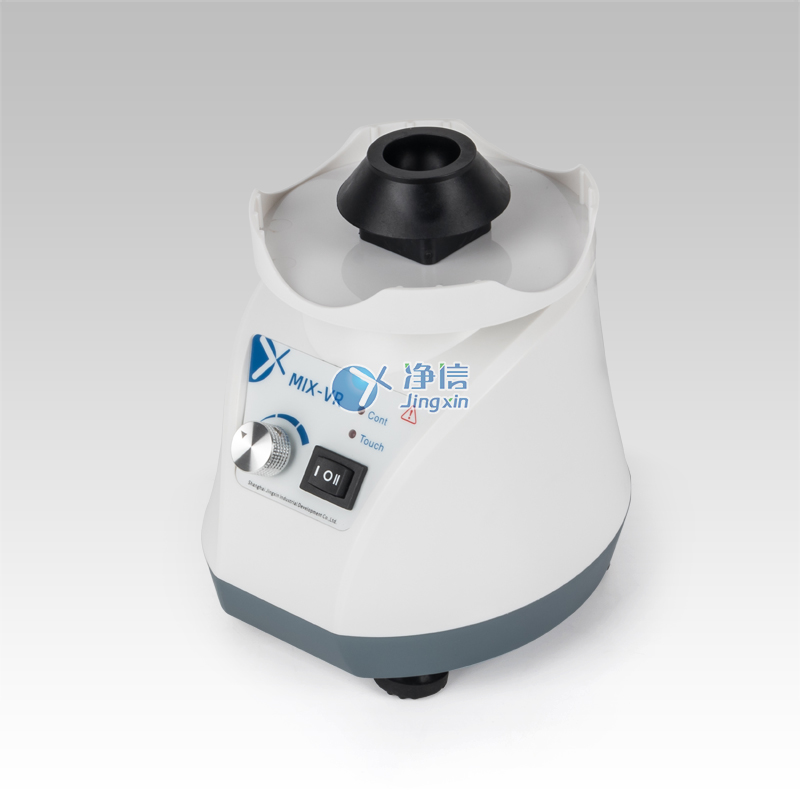

Model：MIX-VR
Brand：Jingxin
Specifications ：Set
Introduction：The multifunctional vortex oscillator is used in the fields of life sciences and physical and chemical analysis, and is used for the oscillation, mixing and stirring of sample tissues, cells, bacterial liquids, chemical reagents, etc.
Product Description:
The multifunctional vortex oscillator is used in the fields of life sciences and physical and chemical analysis, and is used for the oscillation, mixing and stirring of sample tissues, cells, bacterial liquids, chemical reagents, etc. A variety of adapters can be used for 0.2-50ml microtubes and test tubes or small containers with a diameter less than 108mm.
Features:
1. The appearance is small and exquisite, powerful, suction cup type machine feet, super shockproof, suitable for high-speed work.
2. A variety of mixing modes, jog mode and continuous operation mode.
3. Adjustable speed, wide speed range, 0-2500rpm/min, stepless motor speed regulation, stable low speed, strong high speed.
4. The vibration module is easy to install, the product is stable and reliable, and the eccentric bearing design is durable.
5. There are a variety of vibration module adapters to choose from (can be used for Eppendorf tubes, etc.).
Product parameters:
Main parameters | Parameter range |
model | MIX-VR |
Operation display mode | Knob + scale |
Circumference diameter | 3mm |
Oscillation mode | circumference |
Operation mode | Continuous operation or jog |
速度范圍Speed range | 0-2500rpm |
Timing range | / |
Input power | AC220V / AC110V, 50/60Hz |
power | 60W |
Fuse | 250V, 1A, Φ5x20 |
Dimensions | W.134 x D.156 x H.150mm |
net weight | 2.4kgs |
Available accessories | See accessories table |

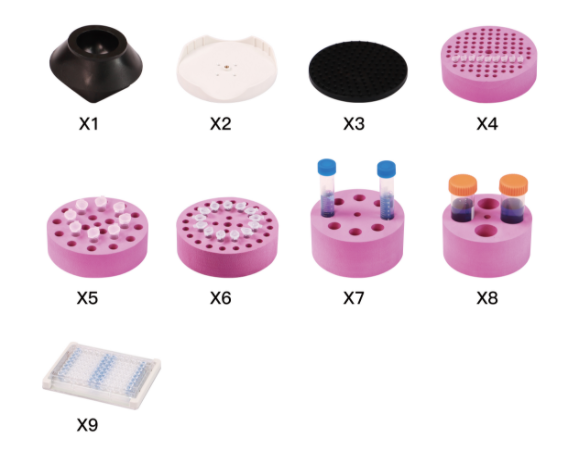

Optional accessories:
Code | Description |
X1 | standard head, used for test tubes and small containers with a diameter less than 30mm |
X2 | standard plastic tray |
X3 | tray gasket, used in conjunction with the standard plastic tray, used for test tubes or small containers with a diameter less than 108mm |
X4 | foam module, used in conjunction with the standard plastic tray, used to place 0.2ml test tubes, pore size Φ5mm×89 pcs |
X5 | foam module, used in conjunction with the standard plastic tray, used to place 0.5ml test tubes, pore size Φ6.6mm×37 pcs |
X6 | foam module, used in conjunction with the standard plastic tray, used to place 1.5/2.0ml test tubes, pore size Φ9.8mm×24 |
X7 | foam module, used with the standard plastic tray, used to place 15ml test tubes, pore size Φ14mm×8 |
X8 | foam module, used in conjunction with the standard plastic tray, used to place 50ml test tubes, pore size Φ26.2mm×4 |
X9 | microplate tray, used to place various microplates, deep well plates, etc. |
